mini_llvm::ir::Instruction Class Reference

#include <Instruction.h>

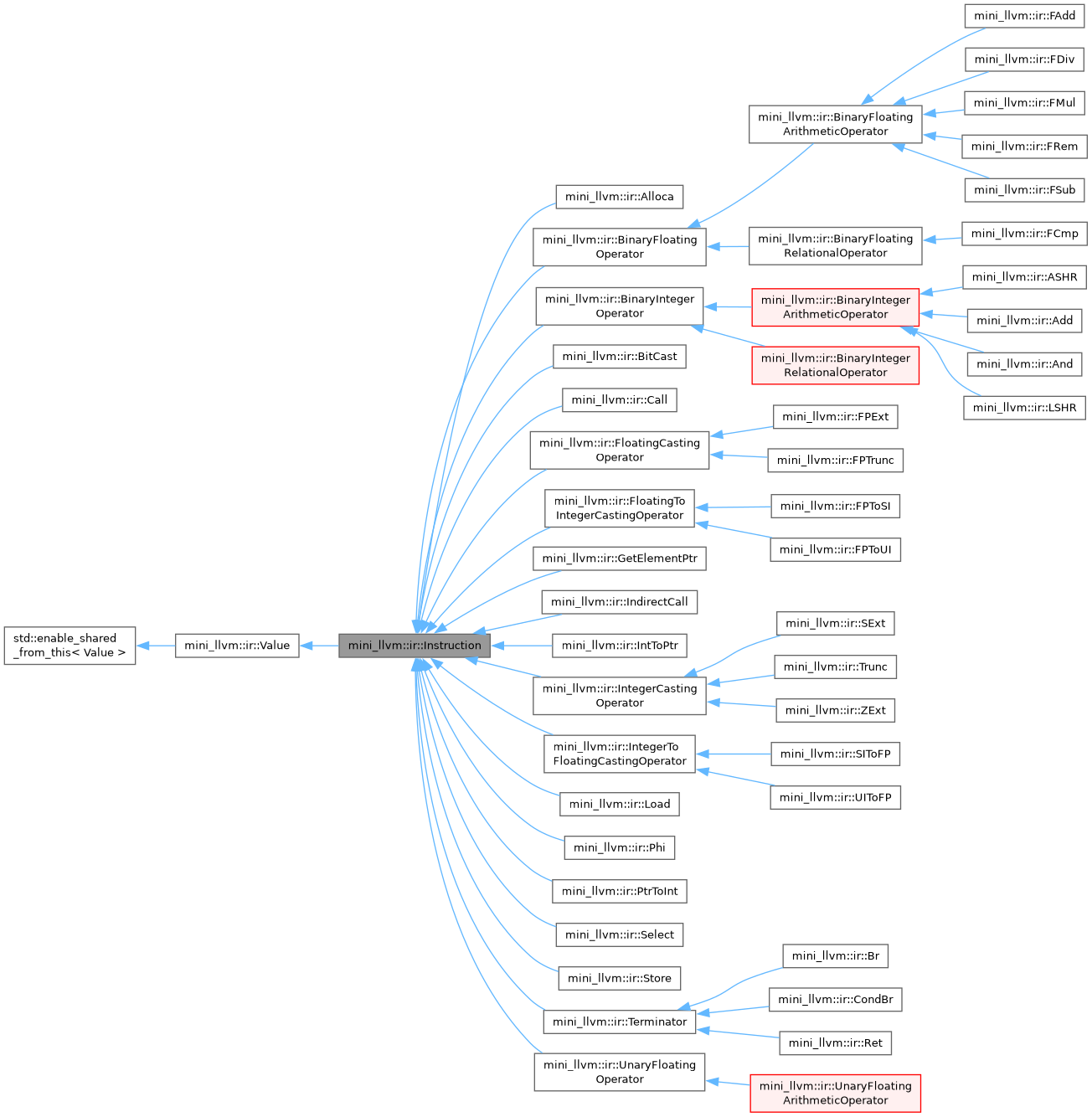

Inheritance diagram for mini_llvm::ir::Instruction:

Collaboration diagram for mini_llvm::ir::Instruction:

Public Member Functions
BasicBlock *	parent () const
BasicBlock::iterator	parentIterator () const
virtual std::unordered_set< const UseBase * >	operands () const =0
std::unordered_set< UseBase * >	operands ()
virtual bool	isFoldable () const
virtual std::shared_ptr< Constant >	fold () const
virtual void	accept (InstructionVisitor &visitor)=0
virtual void	accept (InstructionVisitor &visitor) const =0
bool	isWellFormed () const override
std::string	formatAsOperand () const override
Public Member Functions inherited from mini_llvm::ir::Value
virtual	~Value ()=default
	Value ()=default
	Value (const Value &)=delete
Value &	operator= (const Value &)=delete
	Value (Value &&)=delete
Value &	operator= (Value &&)=delete
const std::string &	name () const &
std::string &&	name () &&
void	setName (std::string name)
std::string	formatName () const
use_iterator	use_begin () const
use_iterator	use_end () const
bool	use_empty () const
size_t	use_size () const
virtual std::unique_ptr< Type >	type () const =0
virtual std::string	format () const =0
virtual std::unique_ptr< Value >	clone () const =0

Friends
class	BasicBlock

Additional Inherited Members
Public Types inherited from mini_llvm::ir::Value
using	use_iterator = IndirectIterator<UseSet::iterator, UseBase>

Member Function Documentation

accept() [1/2]

virtual void mini_llvm::ir::Instruction::accept ( InstructionVisitor & visitor ) const

pure virtual

Implemented in mini_llvm::ir::Add, mini_llvm::ir::Alloca, mini_llvm::ir::And, mini_llvm::ir::ASHR, mini_llvm::ir::BitCast, mini_llvm::ir::Br, mini_llvm::ir::Call, mini_llvm::ir::CondBr, mini_llvm::ir::FAdd, mini_llvm::ir::FCmp, mini_llvm::ir::FDiv, mini_llvm::ir::FMul, mini_llvm::ir::FNeg, mini_llvm::ir::FPExt, mini_llvm::ir::FPToSI, mini_llvm::ir::FPToUI, mini_llvm::ir::FPTrunc, mini_llvm::ir::FRem, mini_llvm::ir::FSub, mini_llvm::ir::GetElementPtr, mini_llvm::ir::ICmp, mini_llvm::ir::IndirectCall, mini_llvm::ir::IntToPtr, mini_llvm::ir::Load, mini_llvm::ir::LSHR, mini_llvm::ir::Mul, mini_llvm::ir::Or, mini_llvm::ir::Phi, mini_llvm::ir::PtrToInt, mini_llvm::ir::Ret, mini_llvm::ir::SDiv, mini_llvm::ir::Select, mini_llvm::ir::SExt, mini_llvm::ir::SHL, mini_llvm::ir::SIToFP, mini_llvm::ir::SRem, mini_llvm::ir::Store, mini_llvm::ir::Sub, mini_llvm::ir::Trunc, mini_llvm::ir::UDiv, mini_llvm::ir::UIToFP, mini_llvm::ir::URem, mini_llvm::ir::Xor, and mini_llvm::ir::ZExt.

accept() [2/2]

virtual void mini_llvm::ir::Instruction::accept ( InstructionVisitor & visitor )

pure virtual

Implemented in mini_llvm::ir::Add, mini_llvm::ir::Alloca, mini_llvm::ir::And, mini_llvm::ir::ASHR, mini_llvm::ir::BitCast, mini_llvm::ir::Br, mini_llvm::ir::Call, mini_llvm::ir::CondBr, mini_llvm::ir::FAdd, mini_llvm::ir::FCmp, mini_llvm::ir::FDiv, mini_llvm::ir::FMul, mini_llvm::ir::FNeg, mini_llvm::ir::FPExt, mini_llvm::ir::FPToSI, mini_llvm::ir::FPToUI, mini_llvm::ir::FPTrunc, mini_llvm::ir::FRem, mini_llvm::ir::FSub, mini_llvm::ir::GetElementPtr, mini_llvm::ir::ICmp, mini_llvm::ir::IndirectCall, mini_llvm::ir::IntToPtr, mini_llvm::ir::Load, mini_llvm::ir::LSHR, mini_llvm::ir::Mul, mini_llvm::ir::Or, mini_llvm::ir::Phi, mini_llvm::ir::PtrToInt, mini_llvm::ir::Ret, mini_llvm::ir::SDiv, mini_llvm::ir::Select, mini_llvm::ir::SExt, mini_llvm::ir::SHL, mini_llvm::ir::SIToFP, mini_llvm::ir::SRem, mini_llvm::ir::Store, mini_llvm::ir::Sub, mini_llvm::ir::Trunc, mini_llvm::ir::UDiv, mini_llvm::ir::UIToFP, mini_llvm::ir::URem, mini_llvm::ir::Xor, and mini_llvm::ir::ZExt.

fold()

virtual std::shared_ptr< Constant > mini_llvm::ir::Instruction::fold ( ) const

inlinevirtual

Reimplemented in mini_llvm::ir::Add, mini_llvm::ir::And, mini_llvm::ir::ASHR, mini_llvm::ir::BitCast, mini_llvm::ir::FAdd, mini_llvm::ir::FCmp, mini_llvm::ir::FDiv, mini_llvm::ir::FMul, mini_llvm::ir::FNeg, mini_llvm::ir::FPExt, mini_llvm::ir::FPToSI, mini_llvm::ir::FPToUI, mini_llvm::ir::FPTrunc, mini_llvm::ir::FRem, mini_llvm::ir::FSub, mini_llvm::ir::ICmp, mini_llvm::ir::LSHR, mini_llvm::ir::Mul, mini_llvm::ir::Or, mini_llvm::ir::SDiv, mini_llvm::ir::Select, mini_llvm::ir::SExt, mini_llvm::ir::SHL, mini_llvm::ir::SIToFP, mini_llvm::ir::SRem, mini_llvm::ir::Sub, mini_llvm::ir::Trunc, mini_llvm::ir::UDiv, mini_llvm::ir::UIToFP, mini_llvm::ir::URem, mini_llvm::ir::Xor, and mini_llvm::ir::ZExt.

formatAsOperand()

std::string mini_llvm::ir::Instruction::formatAsOperand ( ) const

inlineoverridevirtual

Implements mini_llvm::ir::Value.

isFoldable()

virtual bool mini_llvm::ir::Instruction::isFoldable ( ) const

inlinevirtual

Reimplemented in mini_llvm::ir::BinaryFloatingOperator, mini_llvm::ir::BinaryIntegerOperator, mini_llvm::ir::BitCast, mini_llvm::ir::FloatingCastingOperator, mini_llvm::ir::FloatingToIntegerCastingOperator, mini_llvm::ir::IntegerCastingOperator, mini_llvm::ir::IntegerToFloatingCastingOperator, mini_llvm::ir::Select, and mini_llvm::ir::UnaryFloatingOperator.

isWellFormed()

bool mini_llvm::ir::Instruction::isWellFormed ( ) const

overridevirtual

Reimplemented from mini_llvm::ir::Value.

Reimplemented in mini_llvm::ir::IntegerCastingOperator, mini_llvm::ir::IntegerToFloatingCastingOperator, mini_llvm::ir::IntToPtr, mini_llvm::ir::Load, mini_llvm::ir::Phi, mini_llvm::ir::PtrToInt, mini_llvm::ir::Select, mini_llvm::ir::SExt, mini_llvm::ir::Store, mini_llvm::ir::Trunc, mini_llvm::ir::UnaryFloatingOperator, and mini_llvm::ir::ZExt.

operands() [1/2]

std::unordered_set< UseBase * > mini_llvm::ir::Instruction::operands

(

)

operands() [2/2]

virtual std::unordered_set< const UseBase * > mini_llvm::ir::Instruction::operands ( ) const

pure virtual

Implemented in mini_llvm::ir::Alloca, mini_llvm::ir::BinaryFloatingOperator, mini_llvm::ir::BinaryIntegerOperator, mini_llvm::ir::BitCast, mini_llvm::ir::Br, mini_llvm::ir::Call, mini_llvm::ir::CondBr, mini_llvm::ir::FloatingCastingOperator, mini_llvm::ir::FloatingToIntegerCastingOperator, mini_llvm::ir::GetElementPtr, mini_llvm::ir::IndirectCall, mini_llvm::ir::IntegerCastingOperator, mini_llvm::ir::IntegerToFloatingCastingOperator, mini_llvm::ir::IntToPtr, mini_llvm::ir::Load, mini_llvm::ir::Phi, mini_llvm::ir::PtrToInt, mini_llvm::ir::Ret, mini_llvm::ir::Select, mini_llvm::ir::Store, and mini_llvm::ir::UnaryFloatingOperator.

parent()

BasicBlock * mini_llvm::ir::Instruction::parent ( ) const

inline

parentIterator()

BasicBlock::iterator mini_llvm::ir::Instruction::parentIterator ( ) const

inline

Friends And Related Symbol Documentation

BasicBlock

friend class BasicBlock

friend

---

The documentation for this class was generated from the following file:

• include/mini-llvm/ir/Instruction.h
